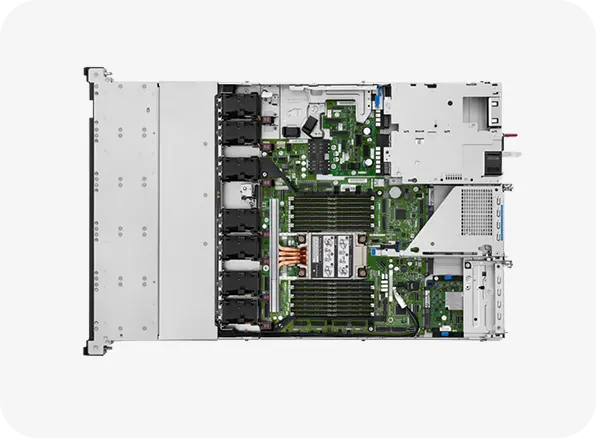

HPE ProLiant Compute DL320 Gen12

Specification of HPE ProLiant Compute DL320 Gen12

• Server Type / Form Factor

  • Type: Enterprise Rack Server
  • Form Factor: 1U Rack
  • Socket: Single-socket (1 x Intel Xeon 6 P-core processor)
• Processor (CPU)

  • Processor Family: Intel Xeon 6 (Rich I/O P-core series)
  • Max Sockets: 1
  • Max Cores per Socket: Up to 144 cores
  • Max TDP: Up to 350 W (varies by CPU model)
  • Memory Channels: 8 channels per processor
• Memory (RAM)

  • Memory Type: HPE DDR5 Smart Memory (RDIMM)
  • DIMM Slots: 16 DIMM slots
  • Maximum Capacity: Up to 4 TB (with 256 GB modules)
  • Speed: Up to 6400 MT/s memory (1DPC)
  • Protection: ECC and advanced RAS features
• Storage

  • Drive Bays (Front): Up to 20 EDSFF E3.S NVMe drive bays
  • SFF Options: 2 SFF x4 Tri-Mode 24G U.3 BC drive cages
  • Backplane Options: 8 SFF x1 or x4 Tri-Mode 24G U.3 BC backplanes
  • Boot Options: Optional NS204i-u Hot-Plug Boot Device (front or rear)
  • Storage Controllers: HPE OCP-type RAID (OROC) or PCIe-based controllers
• Expansion / Connectivity

  • PCIe Slots: Multiple PCIe 5.0 x16-style slots (primary and secondary riser configuration)
  • OCP Slots: Front or rear OCP 3.0 networking slots (1 Gb / 10 Gb / higher options)
  • GPU Support: Up to four single-wide GPUs or two double-wide GPUs (configuration dependent)
  • Ports / I-O: USB 3.2 Gen1 front ports
  • Video Options: Optional DisplayPort / VGA via DC-SCM
  • Management Port: Dedicated iLO service port
• Redundancy & Reliability

  • Power: Modular Common Redundant Power Supply (M-CRPS) design; redundant hot-plug power supplies optional
  • Cooling: Integrated system fan array (7 fans) with hot-swap capability
  • Availability Features: DC-MHS-based hot-swap components, quick-removal access panel, and enterprise-grade serviceability
• Operating System Support

  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • VMware ESXi
  • Canonical Ubuntu
  • Oracle Linux
• Security Features

  • HPE iLO 7 security and secure boot
  • Intel-based hardware security (P-core protections and Rich I-O options)
  • UEFI-managed firmware integrity and TPM-class key management
  • Data-at-rest protection via HPE-approved self-encrypting and encrypted-drive options
• Management & Monitoring

  • HPE iLO 7: Remote console, firmware updates, and configuration
  • Redfish API: Support for orchestration and integration
  • HPE Tools: Cloud operating experience and modular hardware-management capabilities
• Warranty & Support

  • Standard Warranty: 3 Years Parts, 3 Years Labor, 3 Years Onsite (region- and contract-dependent)
  • Optional Support: HPE Pointnext services, Foundation Care, Proactive Care, and custom SLAs for edge, SMB, and ROBO deployments
