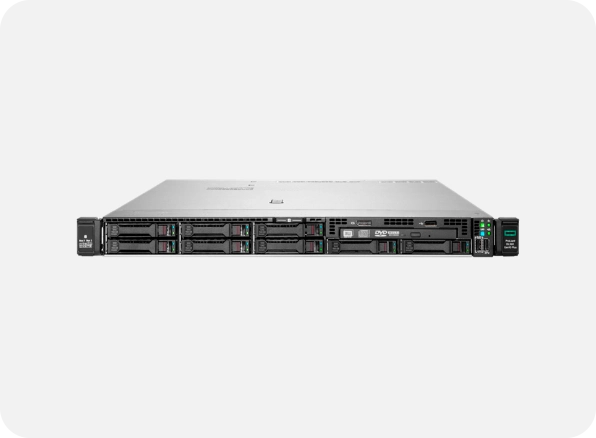

HPE ProLiant DL360 Gen10 Plus Server

Specification of HPE ProLiant DL360 Gen10 Plus Server

• Server Type / Form Factor

  • Type: Rack Server
  • Form Factor: 1U Rackmount
  • Socket: Dual-socket (supports up to 2 processors)
• Processor (CPU)

  • Processor Family: 3rd Generation Intel Xeon Scalable Processors
  • Cores per CPU: Up to 40 cores (e.g., Intel Xeon Platinum 8380, Gold 6338)
  • Base Frequency: ~2.0 to ~3.1 GHz depending on model
  • Max TDP: 165W to 270W per processor
  • Security: Intel Software Guard Extensions (SGX) support
• Memory (RAM)

  • Type: DDR4 HPE SmartMemory (RDIMM / LRDIMM) and Intel Persistent Memory 200 Series
  • DIMM Slots: 32 total (16 per socket, 8 channels per socket)
  • Maximum Capacity:
    • Up to 8.0 TB (32 × 256 GB LRDIMM @ 3200 MT/s)
    • Up to 4.0 TB (32 × 64 GB RDIMM @ 3200 MT/s)
    • Up to 6.0 TB per socket with Intel Optane Persistent Memory (not compatible with SGX)
  • Memory Speed: Up to 3200 MT/s (depending on CPU and memory type)
• Storage

  • Front Drive Bays:
    • 8 × SFF standard
    • Optional expansion to 12 × SFF (via +2 SFF mid tray)
    • Optional 4 × LFF variant
  • Rear/Mid Tray Options: Up to 6 × SFF rear or 8 × SFF mid tray
  • Supported Types: SAS, SATA, NVMe (U.2 / U.3) via tri mode controllers
  • Boot Options: Slot less HW RAID protected M.2 boot solution (NS204i r)
• Expansion / Connectivity

  • PCIe Slots: Up to 9 × PCIe Gen4 slots across risers (primary, secondary, tertiary configurations)
  • OCP Slot: 1 × OCP 3.0 x16 mezzanine slot for networking or storage options (up to 200GbE)
• Redundancy & Reliability

  • Power Supplies: Redundant hot plug Flex Slot Platinum (e.g., 800W; required high-performance PSU for high-TDP CPU/NVMe/GPU configs)
  • Cooling: Standard 5 hot-plug fans (up to 7 fans with high-performance kit for dual CPU/ NVMe/GPU setups)
  • Chassis Intrusion Detection: Available as an option
• Operating System Support

  • Microsoft Windows Server 2019 / 2022
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • VMware ESXi 7.x and 8.x
  • Other: Ubuntu, Oracle Linux, Citrix XenServer
• Security Features

  • Silicon Root of Trust: Validates firmware and processor identity
  • Secure Boot & Secure Erase: Enforces verified system startup and safe decommissioning
  • Optional TPM 2.0 & Chassis Intrusion: Available as FIO options
• Management & Monitoring

  • Integrated Lights-Out (iLO 5): Remote console, firmware updates, monitoring, health alerts
  • Management Tools: HPE InfoSight, HPE OneView, Intelligent Provisioning
  • API Support: RESTful API, Redfish, SNMP v3, IPMI 2.0
• Warranty & Support

  • Standard Warranty: 3-Year Parts, 3-Year Labor, 3-Year Onsite (Next Business Day)
  • Optional Services: HPE Pointnext Tech Care, Foundation Care, Proactive Care
